Protocol

Transitioning from 96- to 384-Well Plates: A Lab Manager's Guide

Moving to 384-well format can increase throughput and reduce cost per data point, but it also magnifies evaporation and pipetting errors. This guide focuses on a practical transition plan.

DISPENDIX Team
Apr 10, 2026

Why labs move to 384-well format

The appeal is simple: four times as many conditions in the same footprint, and a big reduction in reagent volume per data point. For groups under pressure to screen more conditions, that is often the fastest way to expand capacity without buying more incubators or readers.

But a format switch is not a mechanical change. It can change assay behavior. Most teams that struggle in 384-well format run into the same set of issues: evaporation, inconsistent mixing, and alignment errors during liquid handling.

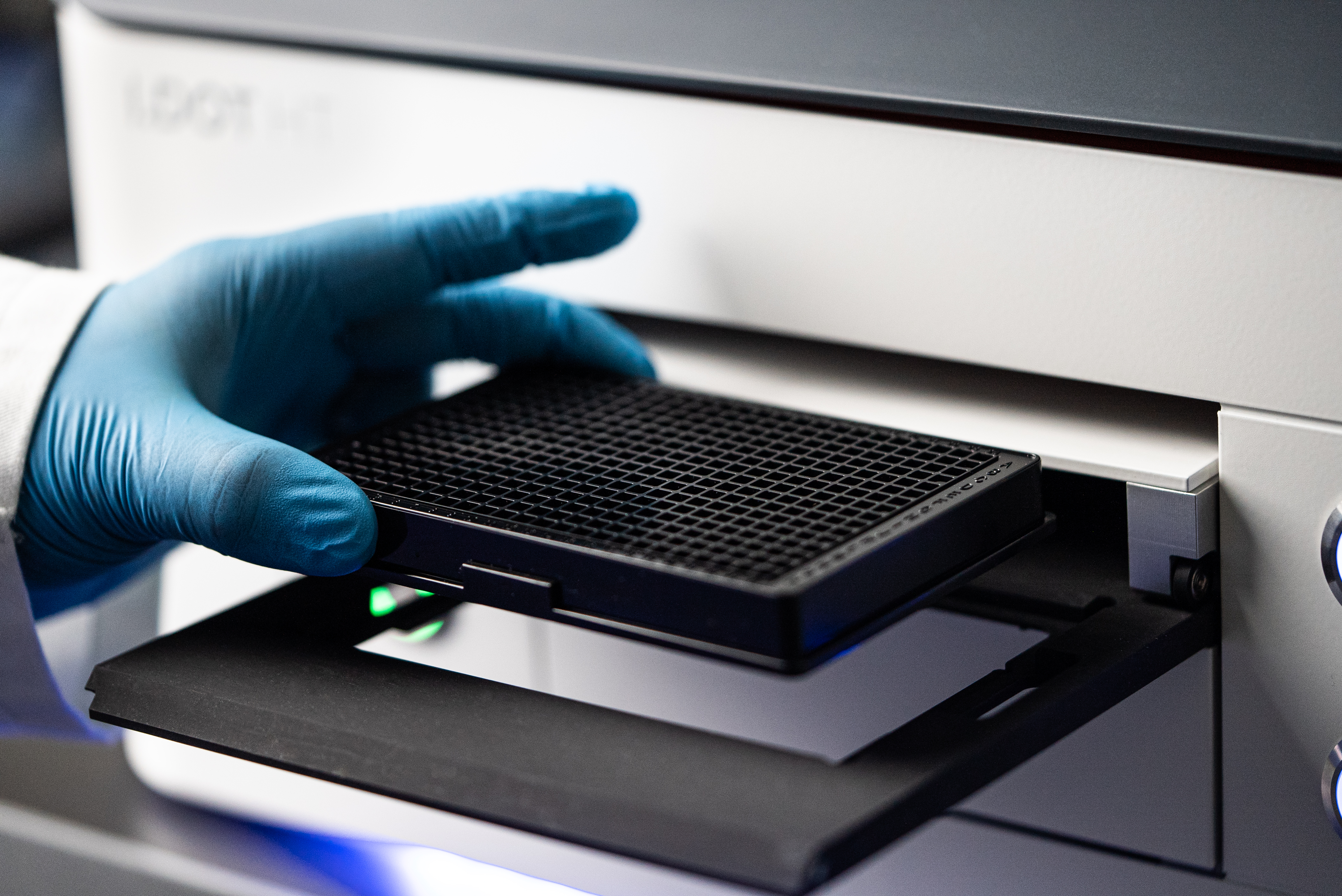

HT.60 plateImage 1: A person inserting a 384-well plate into the I.DOT instrument

Common problems and why they happen

With the introduction of a 384-well plate format, several concerns can and do arise when they are implemented into high throughout applications. Here are the most common problems researchers face:

Evaporation and edge effects

The surface-area-to-volume ratio is higher. A small absolute loss becomes a large concentration shift at 5 µl compared to 20 µL.

Alignment and well-to-well placement

At 384-well spacing, small hand movements can skip wells or double-dispense without being obvious.

Higher relative pipetting error

A 0.2 µL deviation is minor at 100 µL but noticeable at 10 µL.

Reader performance

Some plate readers show more cross-talk or require different optics settings in higher-density formats.

A stepwise transition plan that works

The most reliable way to transition is to treat it like an assay re-optimization, not a direct scale-down. Follow the steps below before your transition:

  1. Start with a limited plate: Validate a small set of controls and standards in 384-well format before you miniaturize every condition.

  2. Check assay quality metrics early: Compare Z' (or an equivalent) between formats. If it drops, find out why before you proceed.

  3. Run a full-plate uniformity test: Dispense the same signal into every well and plot signal by position to quantify edge effects.

  4. Lock down sealing and incubation: Use consistent seals, humidity control where possible, and minimize time with plates open.

Where automation helps the most

Manual pipetting into 384-well plates is possible, but it becomes fragile for quantitative work. Even experienced staff will see more outliers when volume drops and timing gets tight.

Non-contact dispensing can reduce both alignment risk and volume variability at low volumes. Tip-free systems such as the DISPENDIX I.DOT are often used to dispense small reagent volumes, normalize concentrations, or set up dilution series without the overhead of tips and wash steps.

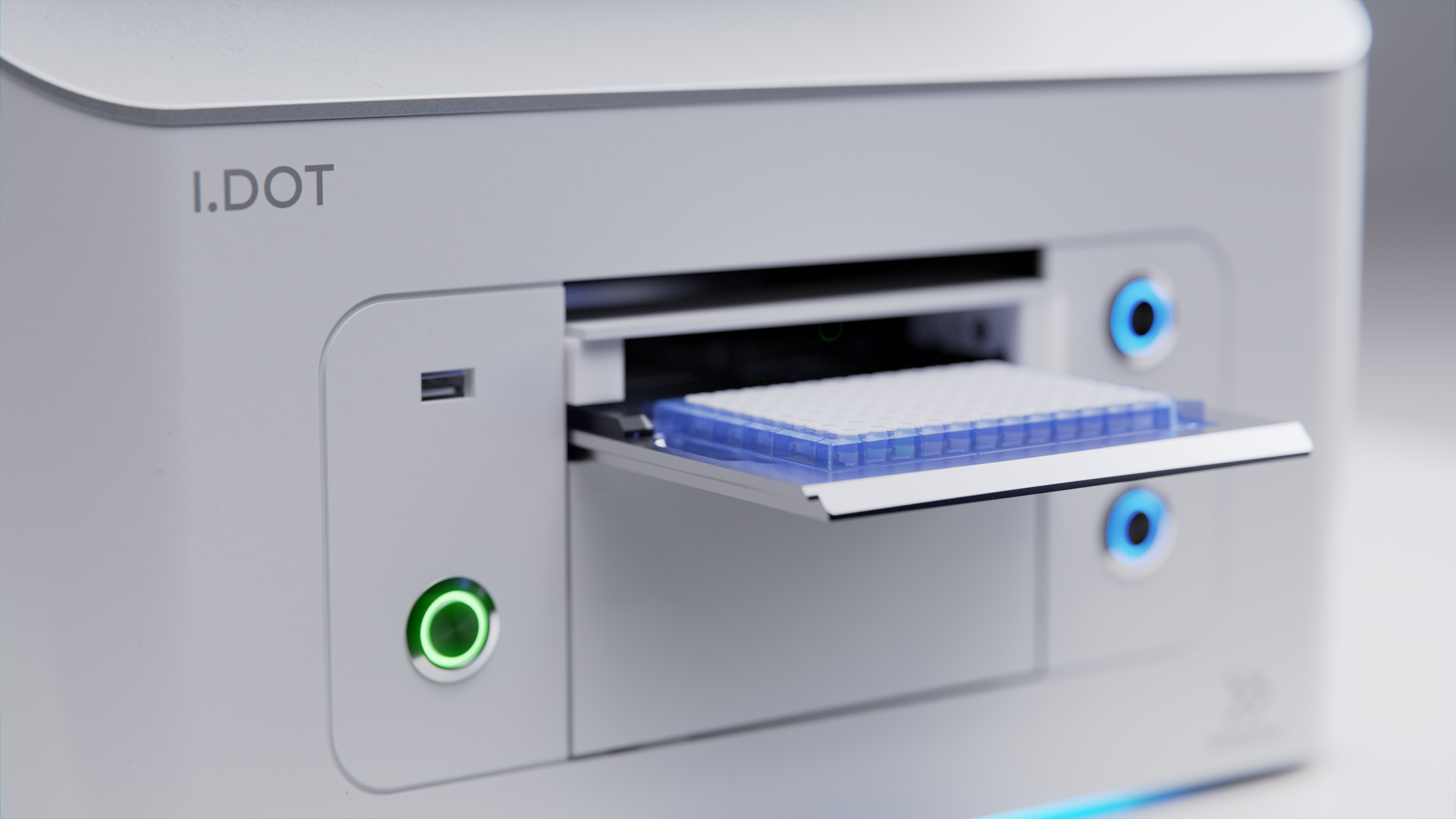

I.DOT_BEAUTYSHOTS_06Image 2: A blue 96-well plate placed on the I.DOT's opening door, ready to initiate reagent dispensing protocols.

Download the I.DOT brochure to learn more

Don't forget the downstream workflow

The plate is only one part of the chain. Check that your plate reader, shaker, sealers, and incubators are comfortable with 384-well plates. If you use imaging, verify autofocus and exposure settings. Small well volumes can change meniscus shape and optical path length.

Key takeaways

•    Treat the move to 384-well as a re-optimization, not a straight scale-down.
•    Quantify edge effects with a uniformity plate, not by guessing.
•    Automation can reduce common human-error modes, especially when volumes fall below 10 µL.
